Protocol network architecture

A CPP-compatible deployment can connect many Vouchers and Pools through optional registries, indexes, quote modules, and application-level route discovery. Each Pool remains a separate vault with its own liquidity, owner, proxy administrator, configuration, and dependencies.

Grassroots Economics Foundation operates the public App at cosmolocal.credit. Other interfaces and deployments can use the same public protocol. Operating the App does not automatically make GEF the owner, issuer, Steward, fee recipient, or guarantor for every contract shown below.

See Concepts and vocabulary for the separation between accountable roles and technical powers.

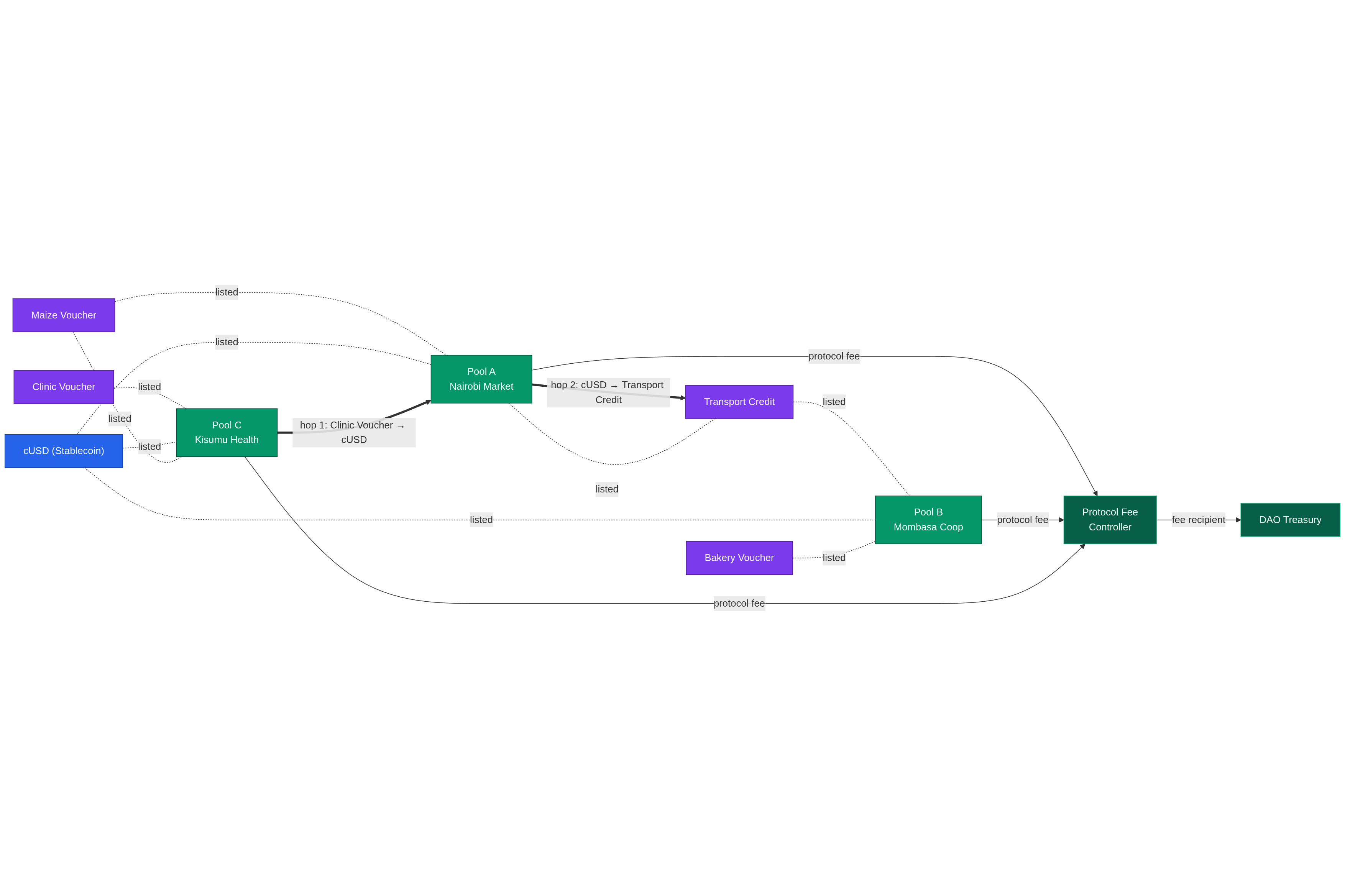

Candidate routes and execution

Scroll horizontally to view the full diagram.

A shared asset creates a possible graph path, not a guaranteed route. In this example, Voucher A could be exchanged for the bridge asset in Pool A, then the bridge asset could be exchanged for Voucher B in Pool B. Every hop still depends on current token admission, Pool limits, available inventory, quote and fee configuration, oracle state, approvals, transaction bounds, and network execution.

SwapRouter only calls Pool quote functions across a proposed path. It does not hold funds, approve tokens, or execute swaps. An integrator or compatible app can use those quote results to construct ordered approval and Pool calls in a signed smart-account batch; this does not mean that the current public App offers multi-hop execution. Each hop settles to the Wallet before that Wallet supplies the intermediate asset to the next Pool, and the integrator can configure the batch to revert when a call fails.

Quotes are snapshots. A successful route quote can still fail or settle differently if relevant state changes before execution. The bounded SwapPool.withdraw overload adds minAmountOut and deadline protection for an individual hop; integrators must decide how to apply bounds across the full route.

Pool fees remain with the relevant Pool for later collection. Any protocol fee is additional and is transferred directly from that Pool to its configured protocol recipient during the swap.

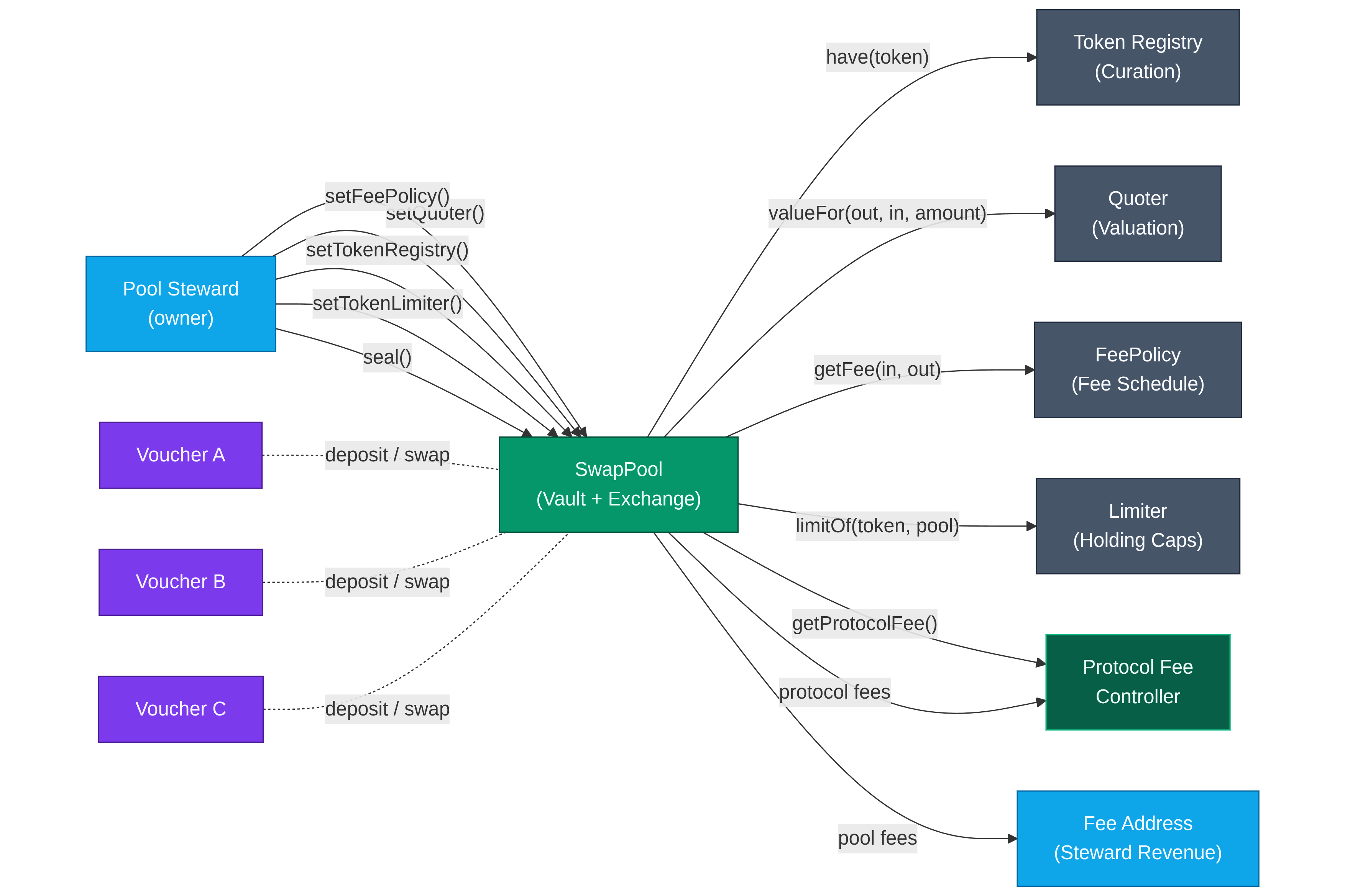

Pool internals

Scroll horizontally to view the full diagram.

The registry, limiter, quoter, fee policy, and protocol-fee controller are optional. With no registry, any token passes the admission check; with no limiter, deposits are uncapped; with no quoter, the Pool uses raw-unit parity; and with no fee modules, the corresponding fees are zero.

The five sealable slots are feePolicy, feeAddress, quoter, tokenRegistry, and tokenLimiter. A seal prevents the current Pool owner from replacing that address through its setter, but it does not freeze the dependency's internal state. The protocolFeeController address and feesDecoupled mode are not covered by those five seal bits. The proxy administrator's ability to upgrade the Pool is also separate from sealing.

The contract owner can withdraw available Pool liquidity to a chosen address. In decoupled-fee mode, accrued fees are reserved from that path; the power to withdraw the remaining liquidity still exists. Participants should inspect the owner, proxy administrator, dependency controllers, seal state, fee recipients, and published Pool rules before relying on a Pool.

For the conceptual design behind these contracts—including curation, valuation, limitation, exchange, and governance—see the White Paper.
